UNM Dreamstyle Arena (“The Pit”)

By Edith Cherry and James See – July 27, 2020

#1_DSC1453 copy

Former Names: University Arena (1966-2014); WisePies Arena (2014-17)

Address: 1111 University Blvd. SE, Albuquerque, NM, 87106
Access: 505 925-5626 | Website

The University of New Mexico’s basketball arena is known nationally for the atmosphere created by the sunken court. The noise level generated at a game by the “bowl” of screaming fans is extreme, resulting in its nickname, “The Pit,” regardless of official naming rights.

Architecturally, this basketball arena’s original construction was very creative and inexpensive. The 338-foot by 300-foot roof over the court and seating is without columns that would interfere with the view. The design called for the roof to be constructed over solid ground, making the use of shorter scaffolding possible. Diagram #1 UNM Pit Stage One

The corrugated steel roof deck and ceiling, bolted to the lattice trusses, form the top and bottom members of the roof trusses. This structural system, often used for bridges, is extremely light-weight and therefore less expensive than competing, long-span systems. Once the roof system was completed and the scaffolding removed, the “Pit” was excavated and the seating and court were installed. Diagram #2 UNM Pit Stage Two

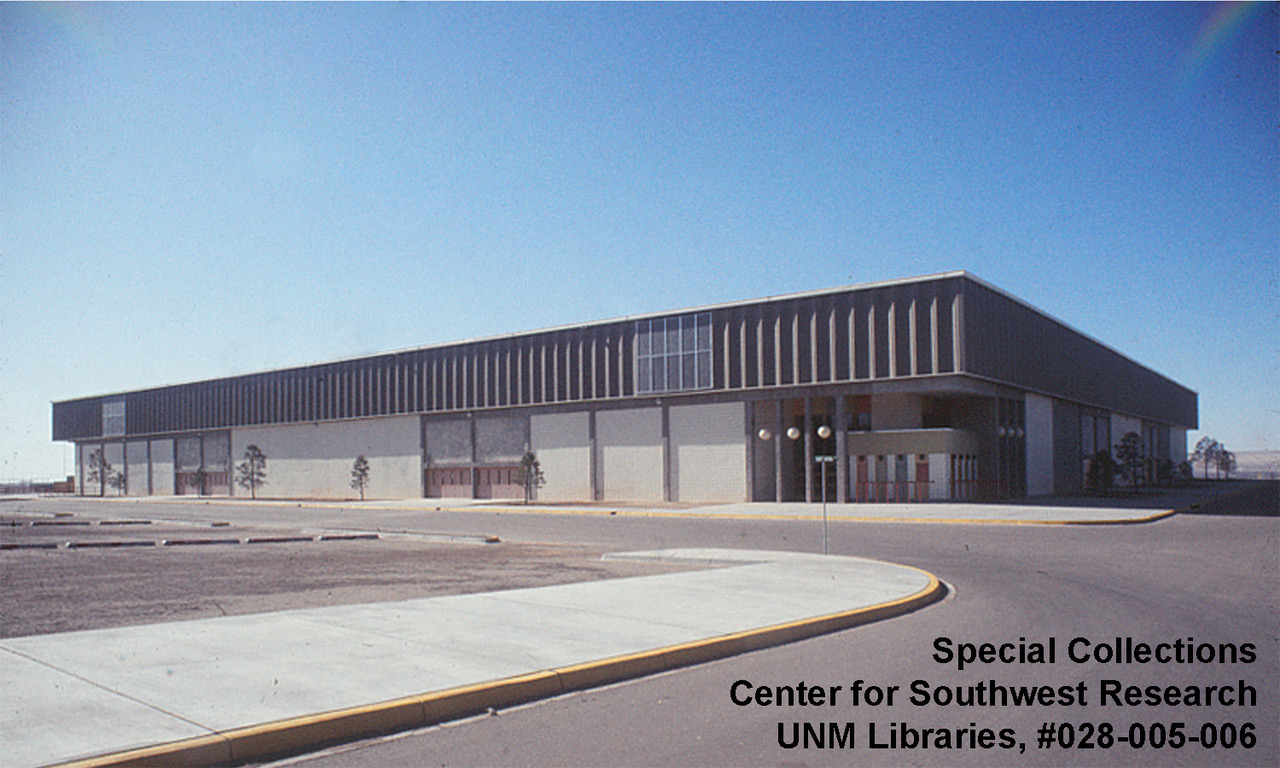

#2 07f-Pit2_acc 028 005 006 copy copy

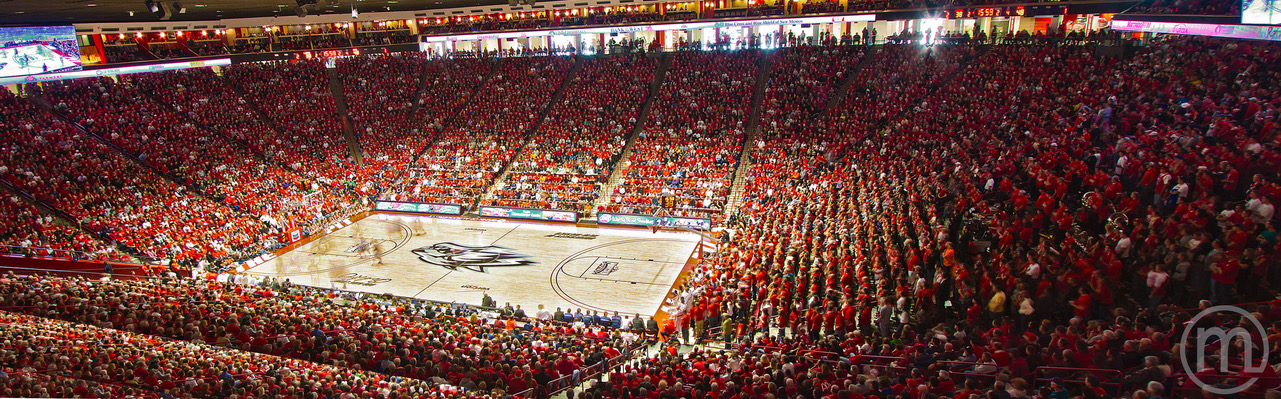

In 1975, additional seating was added on cantilevered balconies between the concourse level and the ceiling, increasing the seating capacity from 14,850 to 18,018. A more radical upgrade in 2009 provided suites and met other contemporary expectations of modern arenas. A major redo of the facades on the main streets added the pizzazz of a glass lobby with changing LED lighting to the major public entry. However, the main feature remains “The Pit” filled with screaming Lobo fans.

The Pit - Packed_mattophoto 2

Completed: 1966
Architect: Joe Boehning, Architect
Contractor: K. L. House Construction Co.
Remodel Date: 1975
Remodel Architect: Joe Boehning, Architect
Remodel Contractor: George A. Rutherford, Inc.
Remodel Date: 2009
Remodel Architect: Molzen Corbin
Remodel Landscape Architect: Molzen Corbin
Remodel Contractor: Flintco West, Inc.

AIA Albuquerque Honor Award (1966)
AIA New Mexico Design Award (1975)
AIA Western Region Design Award (1975)
NAIOP Chairman’s Award (2009)
Associated Builders & Contractors, Inc. /NM Chapter, Excellence in Construction Awards, Renovation Category (2009)

Learn More:
Wikipedia: The Pit
Newcomb, Tim, “The 25 Best College Basketball Arenas,” Popular Mechanics, (February 13, 2019). https://www.popularmechanics.com/adventure/sports/g26307423/best-college-basketball-arenas/?slide=16

2000 Hooker, Van Dorn with Melissa Howard and V.B. Price, Only in New Mexico: An Architectural History of the University of New Mexico. The First Century, 1889-1989, pp. 170-173, and 316. The University of New Mexico Press Albuquerque, New Mexico.
